Hardware Performance |
|
Chipset |
RTL8197FH-VG5+RTL8812FR+RTL8367RB |

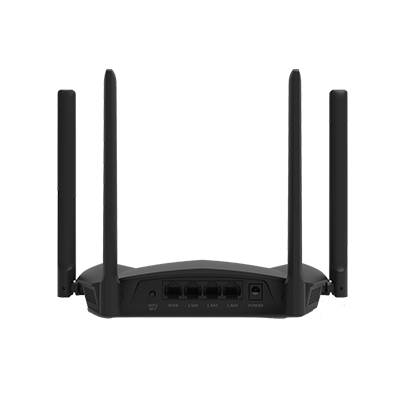

Interface |
1x 10/100/1000M WAN port and supports Auto MDI / MDIX 3x 10/100/1000M LAN ports that support Auto MDI / MDIX |
Button |
Reset / WPS (long press 5s reset, short press 1s WPS) |
LED |
1x Green Status |
Antenna |
4x External Omnidirectional 5 dbi gain non-removable antenna |
Power |
DC 12V/1A |
WIreless |
|
Basic function |
Wireless enable / disable SSID broadcast enable / disable Channel selection: 1 ~ 13 (2.4G) 36 ~ 48 + 149 ~ 165 (5GHz) 2.4G bandwidth: 20MHz ,40MHz 5G bandwidth: 20MHz ,40MHz ,80MHz |
Frequency |
2412~2472M Hz 5180~ 5240MHz 5745MHz ~5825MHz |
ThroughPut |
The 2T2R is up to 1200Mbps |
RF Power |
2.4G Power: 802.11b 22±1.5dBm 802.11g 21±1.5dBm 802.11n20 19±1.5dBm 802.11n40 19±1.5dBm 5G Power: 802.11a 19±1.5dBm 802.11n20 18.5±1.5dBm 802.11n40 18.5±1.5dBm 802.11ac80 17.5±1.5dBm |
Mode |
Router,Ap,WISP,Client+AP |
Wireless security |
Wireless MAC address filtering WPA-PSK,WPA2-PSK,WPA/WPA2-PSK WPS(PBC) |
Wireless Functions |
Wireless network isolation Wireless site scanning |
WiFi Setting |
WiFi Settings (switch, wireless mode, SSID, PWD, encryption algorithm, channel, bandwidth) Visitor network (SSID, encryption mode, PWD, encryption algorithm, duration, speed limit) |
Mesh |
Mesh Switch Role selection Networking mode Mesh-TOP |
Software |
|
Network settings |
Support for WAN port connection type: PPPoE, dynamic IP, and static IP MAC address clone, IPTV settings |
LAN Settings |
DHCP server settings Manage IP settings |
Firewall |
Port mapping, DDNS, DMZ, WAN prevention PING, remote WEB management |
Advanced setup |
Traffic statistics, network speed control, parental control |
System management |
System status, time setting, password management, configuration management, and firmware upgrade |
Others |
|
size |
232.3x165.4x37mm |
Environment |
Operating temperature: 0℃ to 40℃ Storage temperature: -40℃ to 70℃ Working humidity: 10% to 90% RH does not condense Storage humidity: 5% to 90% RH not condensing |
Packing Quantity |
20Pcs/box |
